floor conveyor is a permanent or semi-permanent mechanical system installed at floor level (or just above it) used to move materials, products, or heavy loads from one point to another within a facility. Think of it as a "moving sidewalk" for industrial goods. Unlike overhead conveyors that hang from the ceiling, these utilize the structural strength of the floor to support weight.
Best For : Multi-floor transport, lightweight packaging, and high-speed sorting.
Design : Features a continuous loop of high-grip rubber or PVC moving over motorized pulleys.
Benefit : Provides consistent speed and total support for items of various shapes.

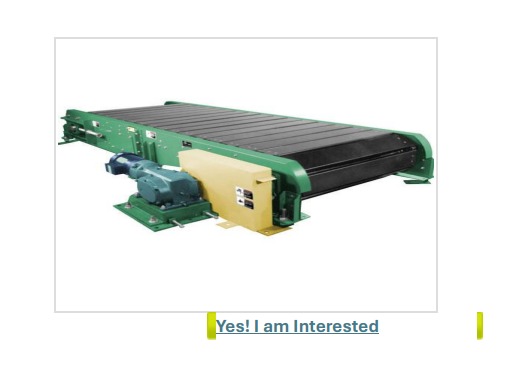

We offer slat conveyor having one or more endless chains to prevent overlapping and interlocking spaced slats. The slats are either of wood or flanged metal. Our slat conveyors are very useful for handling heavy loads of heated materials.
SLATS : Cold Formed steel slat, 5-3/4 in. x 1-1/2 in. x 7 ga. channel.
CHAIN : 4-6 in. pitch bushed roller steel chain with 2 in. dia. high capacity roller bearing.
BED 17 in. deep x 10 ga. formed steel channel powder painted. Standard 5 ft. and 10 ft. long sections bolt together with butt couplings.
DRIVE SPROCKETS : 12 in. pitch dia. With 2-15/16 in. dia. shaft.
TAKE-UP : Take-ups provided at tail sprockets. Provides 15-1/2 in. of chain take-up.
BEARINGS : Sealed, pre-lubricated, self-aligning ball bearings at drive and tail sprockets.
SPEED REDUCTION : Heavy-duty sealed worm gear C-Face speed reducer.
No.100 roller chain to drive sprocket. Equipped with shear pin hub.
MOTOR 2 HP 230/440/460V 3 Ph. 50-60 Hz. Energy Efficient C-Face and MD65 AC variable speed controller with soft start capability and motor overload protection.
ELECTRICAL CONTROLS Not furnished as standard equipment.
CONVEYING SPEED : Constant 30 RPM.
CAPACITY : Maximum load per linear foot of conveyor 1400 lbs.
FLOOR SUPPORTS : Now supplied as optional equipment.
