Overhead and floor Conveyors for various Industries offered can be made available in various type i.e. 2,3,4 Wheel configurations - bi-planer chain and Enclosed power Track chain in different length options as per the specific conveying needs of the Automobile, Beverage, cycle, cement, castings, Electronics, Food product, garments, leather or tannery, plastic, Tyre, tea industry.

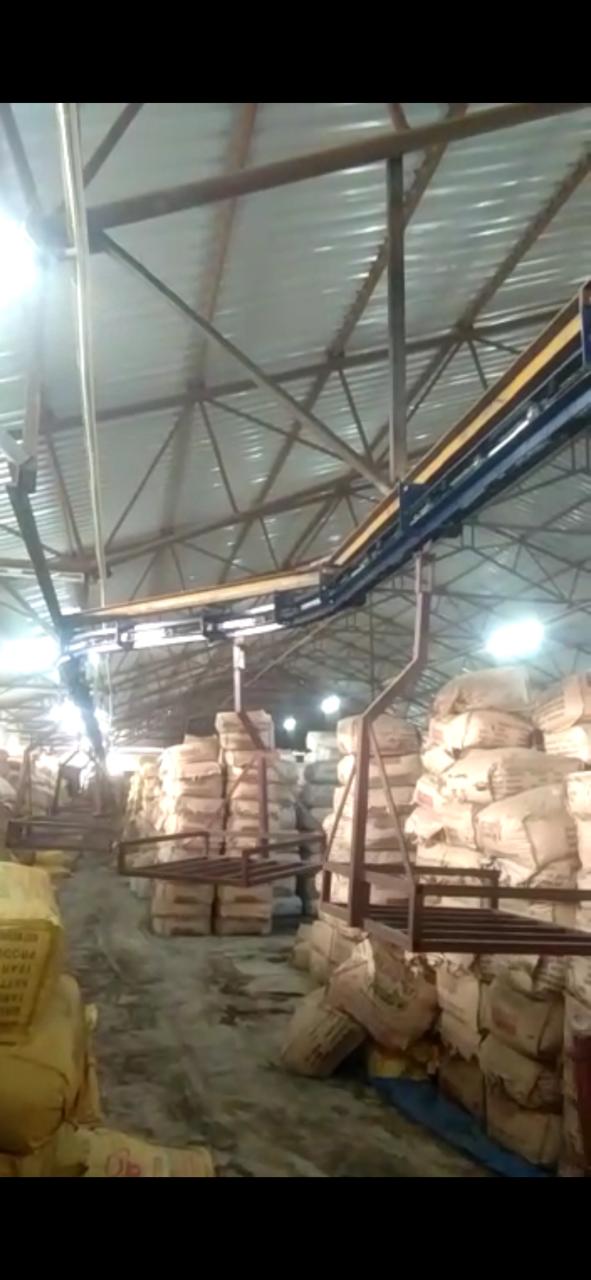

We are the reputed manufacturer and supplier of Two Wheel Overhead Conveyors that are widely acclaimed for their optimum functionality and negligible maintenance. These are suitable for carrying out any type of material handling requirements in different industries such as automobiles, tea factories, leather factories and many more.

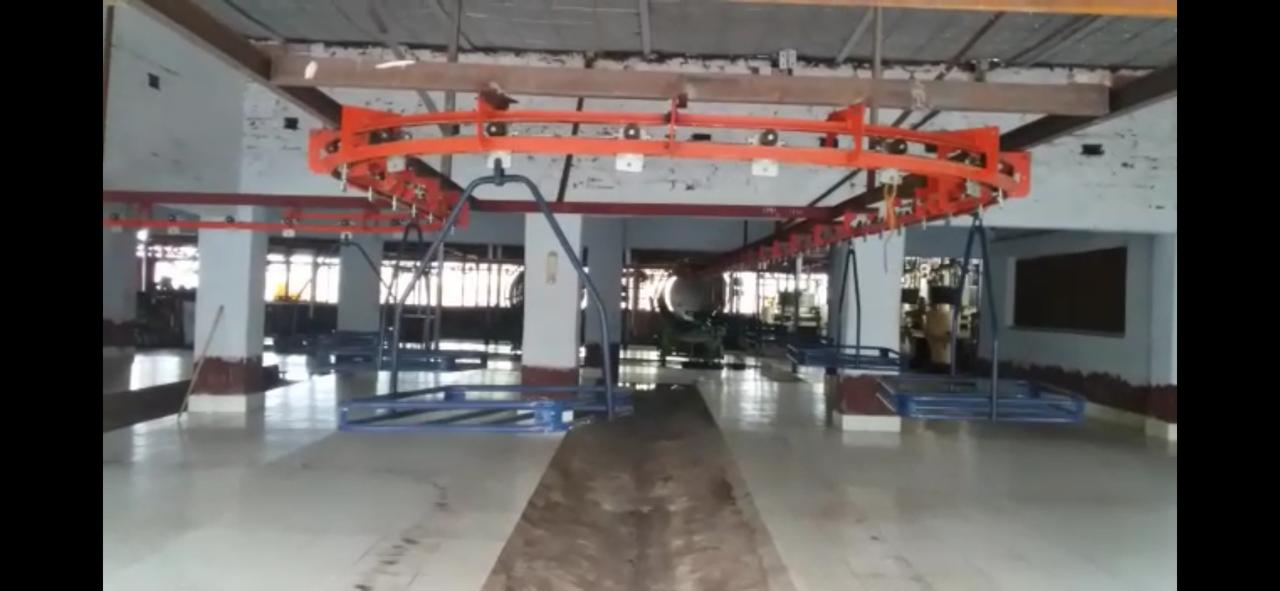

We offer MONO-O-VEYOR Overhead Conveyor System, which is cost effective and exceptionally conveyor system. This system is capable in solving all types of material handling requirements of different industries e.g. Tea factories, Automobile, Tractors, Leather industries, Ceramics, Cement, paper, Cchemical etc. This system saves cost, as this is easy to maintain and considerably save floor space to increase labour productivity
1 The guide wheel and load wheel of same diameter controls gyroscopic couple, which controls the vibration of movement through vertical & horizontal bends
2 It is absolutely a proven system to absorb any type of vibration or shock
3 The Trolleys and Links Axle are mainly made of alloy steel of EN-8 EDD qualities of C.R.C.A. sheets
3 The wheels are made of especially high quality high carbon and manganese steel balls
Drive
The Overhead Conveyor system moves by caterpillar or sprocket type drive unit. There is a 1 HP or 2 HP TEFC motor that transmits the motion to speed gearboxes through �V� Belts. The speed can also be regulated as per the necessity using other variable-speed-motors.
The output shaft of the speed Gearbox is fitted with a shear pin sprocket. This output shaft transmits motion to dog-chain or sprocket and directly engages two sets of trolleys at a time. It permits a relative motion between trolleys distributing drive power equally and automatically to monorail ensuring continuous movement of the system.
Conveyor Chain
Mono�O�Veyor system is provided with bi-planner type three, four and five wheel chain & trolleys having 6", 9", 12", 9" and 15" pitch. Working tension (ALLOWABLE PULL) of the chain is 350 kg and the breaking load is 3500kg.
Service
We have a team of experienced staff to provide post-sale service to make the existing conveyor running perfectly. In addition, we also provide all the necessary spares made of high-grade steel. We provide total services job on annual basis that includes overhauling motor and gearbox.
Powder-Coating System and Auto-Oil Lubricator
The Powder Coating System is used for dry coating application using the powder of
thermoplastic materials or thermoset polymer. Providing hard finish tougher than paint, this
system is mainly used for coating of metals.
The Auto-Oil Lubricator provides lubrication to various internal systems such as moving parts, wheels, etc. This ensures cleaning and corrosion resistance to the internal parts of the conveyor systems.
The Straight Power Track Conveyor is made out of MS rolled angle or 10BG cold formed sheet with dimension 36 X 36 X 3 mm and standard length of 2500 mm. This system is fitted with a supporting track bracket of 4 mm thick at 625-mm pitch. The track can be made to special angle, if required.
